• 3.73 axle ratio
• Electronically controlled throttle
• Electronic shift-on-the-fly transfer case
• 10.5" rear axle ring gear diameter
• 5200# front axle
• Four wheel drive
• 750-amp maintenance-free battery
• 136-amp alternator
• 6'4" pickup box
• Trailer tow wiring-inc: 4-pin connector
• 8800# GVWR
• HD front shock absorbers
• HD rear shock absorbers
• Front stabilizer bar
• Pwr steering
• Pwr 4-wheel anti-lock disc brakes

• 17" x 8" aluminum chrome clad wheels
• LT265/70R17E on/off-road BSW tires
• 17" steel spare wheel
• Full size spare tire
• Winch-type tire carrier
• Bright front bumper
• Bright rear bumper
• Front air dam
• Chrome bodyside molding
• Bright grille
• Body color/bright front fascia
• Cargo lamp
• Fog lamps
• Underhood lamp
• Fold-away pwr heated mirrors
• Tinted glass
• Variable speed intermittent windshield wipers
• Pwr sliding rear window

• AM/FM stereo w/CD player-inc: auxiliary input jack
• (7) Infinity speakers
• SIRIUS satellite radio -inc: 1-year service *N/A in AK or HI*
• Fixed long mast antenna
• UConnect hands-free communication

• Leather trim 40/20/40 bench seat
• 6-way pwr driver/front passenger seats
• Heated front seats
• Rear 60/40 split-folding bench seat
• Front center seat cushion storage
• Mini floor console
• Carpeted floor covering
• Front/rear floor mats
• Leather-wrapped steering wheel
• Steering wheel mounted audio controls
• Tilt steering column
• Sentry Key theft deterrent system
• Tip start
• Instrument cluster -inc: tachometer
• 120-MPH primary speedometer
• Pwr windows w/driver one-touch
• Pwr accessory delay
• Pwr locks
• Pwr adjustable pedals
• Remote keyless entry
• Speed control
• Security alarm
• Air conditioning w/dual zone temp control
• Cigar lighter
• 12V pwr outlet
• Auto dimming rearview mirror
• Bright interior accents
• Woodgrain instrument panel bezel
• Overhead console w/trip computer, universal garage door opener
• Passenger assist handle
• Dual illuminated visor vanity mirrors
• Ash tray lamp
• Glove box lamp
• Behind seat storage bin
• Child safety rear door locks

• Advanced multistage front airbags
• Front height adjustable shoulder belts
• Tire pressure monitoring warning
• Dual note horn

6.7L I6 CUMMINS TURBO DIESEL ENGINE

• tow hooks

• Quick Order Package 2FH Laramie
• 3.73 Axle Ratio
• Rear Anti-Spin Differential Axle
• 17" x 8" Chrome Clad Aluminum Wheels
• Leather Trim 40/20/40 Bench Seat
• AM/FM Compact Disc
• AM/FM 6-Disc CD & MP3
• Engine Block Heater
• Remote Start System
• SIRIUS Satellite Radio
• Power Fold-Away Trailer Tow Mirrors
• Protection Group
• Front Center Seat Cushion Storage
• 40/20/40 Split Bench Seat
• Rear 60/40 Split Folding Seat
• Hood Insulation
• Front Air Close Out Panel
• Electronically Controlled Throttle
• Next Generation Engine Controller
• BF Goodrich Brand Tires
• Tip Start
• Transfer Case Skid Plate Shield
• Compass
• Speed-Sensitive Wipers
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Tilt steering wheel
• Split folding rear seat
• Speed control
• Remote keyless entry
• Rear step bumper
• Rear seat center armrest
• Rear reading lights
• Power windows
• Power steering
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Outside temperature display
• Low tire pressure warning
• Illuminated entry
• Heated door mirrors
• Front reading lights
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• CD player
• ABS brakes
• Voltmeter
• Tachometer
• Air Conditioning
• 4-Wheel Disc Brakes
• AM/FM radio: SIRIUS
• Front Center Armrest w/Storage
• 7 Speakers
• Auto-dimming Rear-View mirror
• Steering wheel mounted audio controls
• Security system
• Power passenger seat
• Power driver seat
• Leather steering wheel
• Heated front seats
• Garage door transmitter
• Front fog lights
• Front dual zone A/C
• Driver vanity mirror
• Bumpers: body-color
• Bodyside moldings
• Alloy wheels
• Adjustable pedals

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 136
• Maximum Alternator Watts: 1904
• Cooling System
• Total Cooling System Capacity (qts): 20.8
• Total Cooling System Capacity (qts): 16.2
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 6010
• Curb Weight - Front (lbs): 3932
• Curb Weight - Front (lbs): 3410
• Curb Weight - Rear (lbs): 3217
• Curb Weight - Rear (lbs): 2790
• Gross Vehicle Weight Rating Cap (lbs): 9000
• Gross Vehicle Weight Rating Cap (lbs): 8800
• Gross Combined Wt Rating (lbs): 20000
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11350
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8350
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1135
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 835
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 12550
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8250
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3138
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2063
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: Leaf
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Rear (lbs): 6500
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9 x 1.39
• Rear Brake Rotor Diam x Thickness (in): 13.9 x 1.18
• Tires
• Front Tire Order Code: TXE
• Rear Tire Order Code: TXE
• Spare Tire Order Code: TBB
• Front Tire Size: LT265/70R17E
• Rear Tire Size: LT265/70R17E
• Spare Tire Size: LT265/70R17E
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: 658
• Revolutions/Mile @ 45 mph - Rear: 658
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 52.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 160.5
• Length, Overall w/o rear bumper (in): 247.9
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 79.1
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 48.0
• Front Bumper to Back of Cab (in): 163.1
• Cab to Axle (in): 36.8
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 36.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 41.8
• Ground Clearance, Front (in): 8.1
• Ground Clearance, Rear (in): 7.4
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 76.3
• Cargo Box Width @ Top, Rear (in): 66.4
• Cargo Box Width @ Floor (in): 65.1
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 57.5
• Ext'd Cab Cargo Volume (ft³): 72.2
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 67.0
• Front Hip Room (in): 64.9
• Second Head Room (in): 40.5
• Second Leg Room (in): 44.2
• Second Shoulder Room (in): 66.5
• Second Hip Room (in): 64.4
• Summary

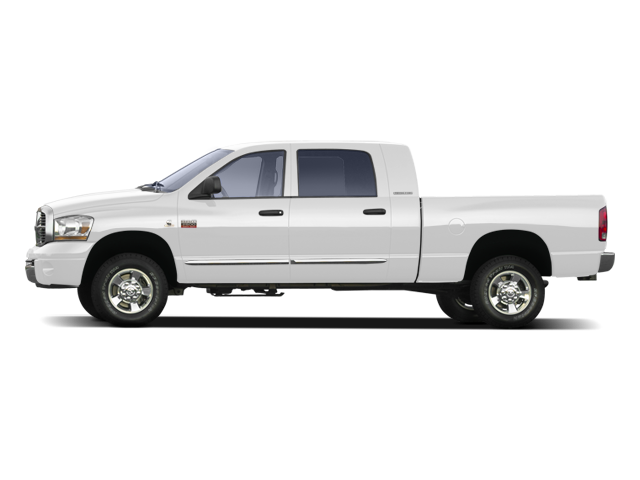

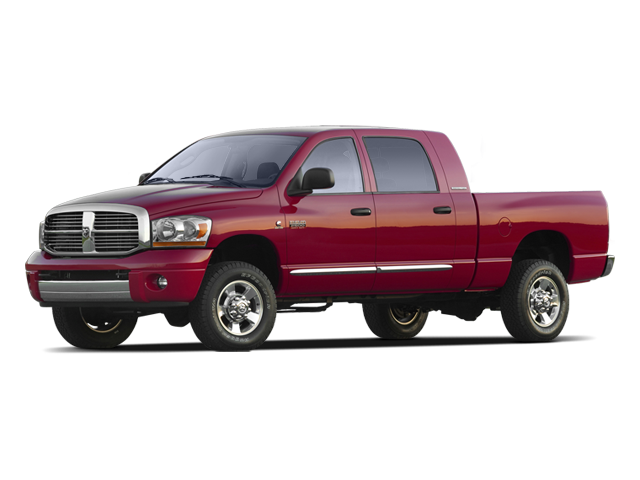

• Vehicle Name: Dodge Ram 2500
• Body Style: Mega Cab 6'6" Box
• Body Code: 160.5" WB
